Coal Mining Rock Drilling Integral Steel Rod

FOB Reference Price:Get Latest Price
US $10-50 / Unit | 20 Unit/Units Coal Mining Rock Drilling Integral Steel Rod (Min. Order)
Supply Ability:
5000 Unit/Units per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
integral steel rod
Type:
Drill Shank, Tapered Steel Rod
Machine Type:
Drilling Tool
Material:
Carbide, 55SiMnMo
Processing Type:
Forging
Use:
Ore Mining
Color:
Blue,red,gold,black, etc
Using:
Rock Drilling, hole blasting
Shank Diameter:
19mm, 22mm, 25mm
Shank Length:
108mm
Application:
Mine and quarry,construction
Feedback:
All cliets give us best feedback
Life time:
Depends on the material you are going to use
Main market:
Europe,Afric,Asia,North and South America
Packaging & Delivery
Packaging Details
Wooden Cases or Cartons, or according to customer's requirements for Coal Mining Rock Drilling Integral Steel Rod
Delivery Time
Within 25 days after receipt of your T/T payment or L/C original

     Coal Mining Rock Drilling Integral Steel Rod





Application:



Our factory can offer many kinds of drilling tools, including chisel type bits, cross type bits, tapered drill rods and integral drill rods and so on.

The integral steel rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.



Products Features:



Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.



According to different application, different lengths are available from 400mm to 5000mm usually.



Regarding Integral drill steels,the quality of a steel material and a tungsten carbide is very important to get good drilling performance.

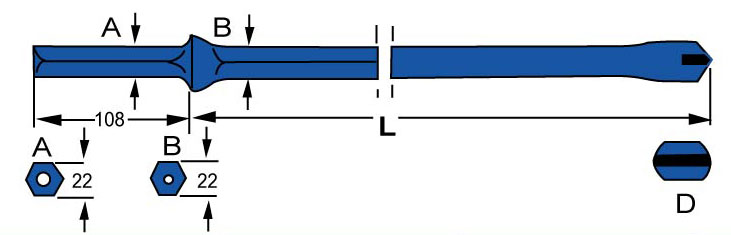

Products technical data:



1) Different sizes available
2) Shank size, hex19, hex22 and hex25
3) Length under collar(mm): 400 800 1600 2400 3200 4000 4800
4) Bit diameter(mm):29,30,31,32,33,34,35,36,37,38,39,40,41

5) Material:55SiMnMo



Shank(mm)Length(mm)Bits Dia D(mm)Weight(kg)
11 Series
Hex22x108800343
1600335.5
2400328
48002915.4
12 Series
Hex22x108800403
1600395.5
2400388
32003710.5
40003612.9
48003515.4
13 Series
Hex22x108400341.8
800333.1
1200324.3
1600315.5
2000306.7
16 Series
Hex22x108600352.4
1200344.3
1800336.1
2400328
17 Series
Hex22x108600412.7
1200404.6
1800396.6
2400388.7



Storage:



We have a lot of stock, if you need, the delivery for the integral steel rod can be fast.

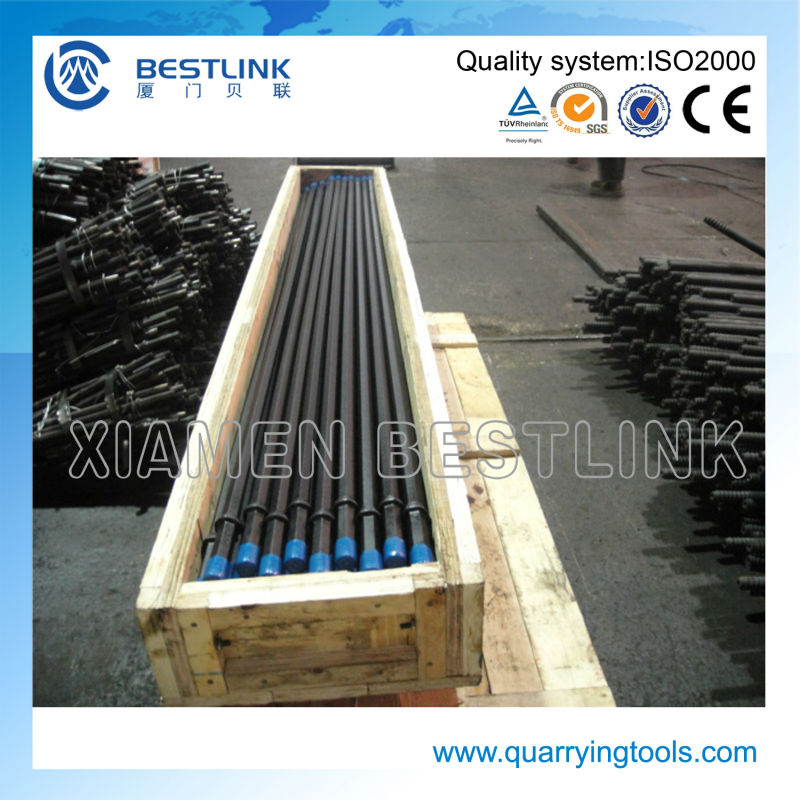

Packing pictures for integral steel rod:



The integral steel rod will be packaged by Wooden Cases or Cartons, or according to customer's requirements. Here is the picture for your reference:

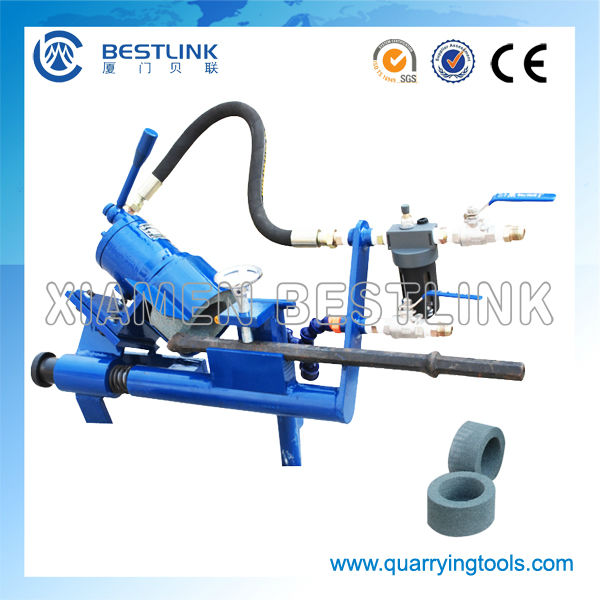

Grinding machine for integral steel rod:



We also have the grinding machine to sharpen the integral steel rod, to extend its lifespan. For more information, please contact with me. Or maybe you can add my skype: bestlinkgroup9
