Hydraulic granite stone pressing cutting and stamping machine

FOB Reference Price:Get Latest Price
US $3,000-6,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CP-90
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Production Capacity:
high
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Voltage:
380V/50Hz
Power(W):
5.5KW
Dimension(L*W*H):
80*100*150cm
Weight:
580KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Color:
Green
usage:
stamping,cutting,splitting
keywords:
stone pressing machine
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Cases /Specially afford your desire.
Port
Xiamen

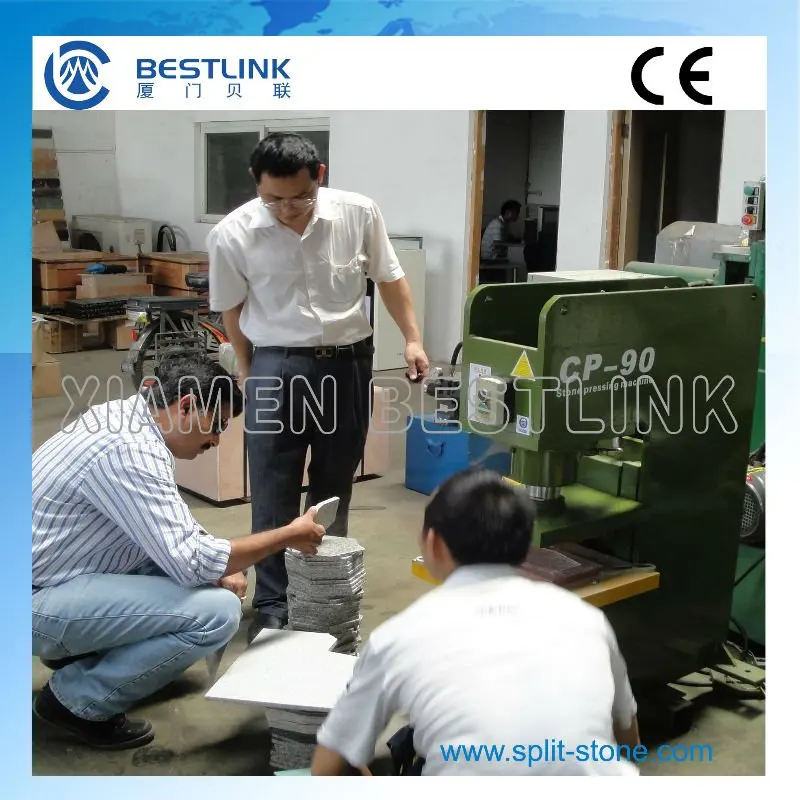

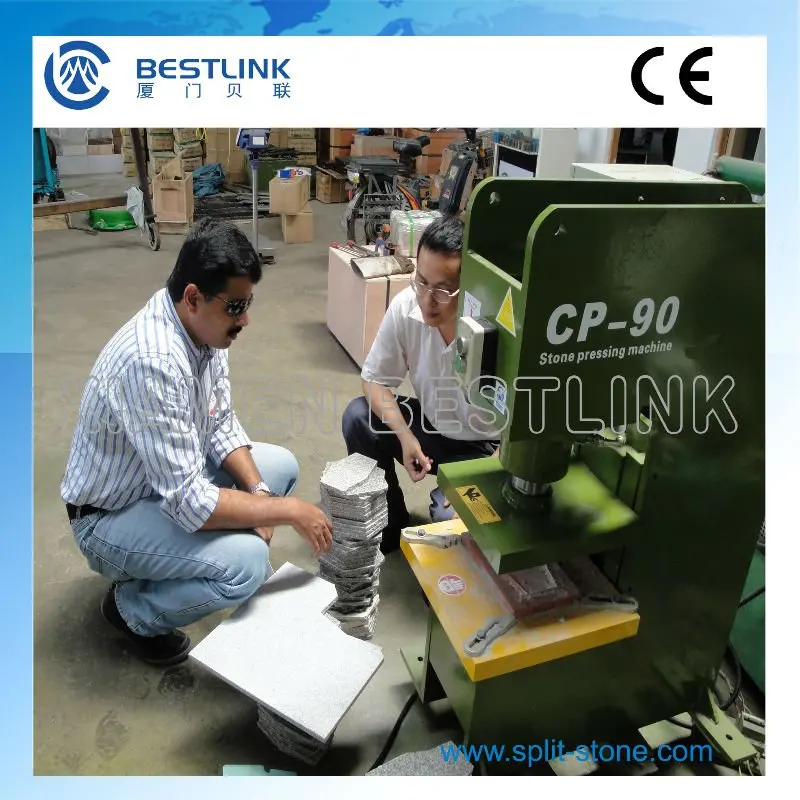

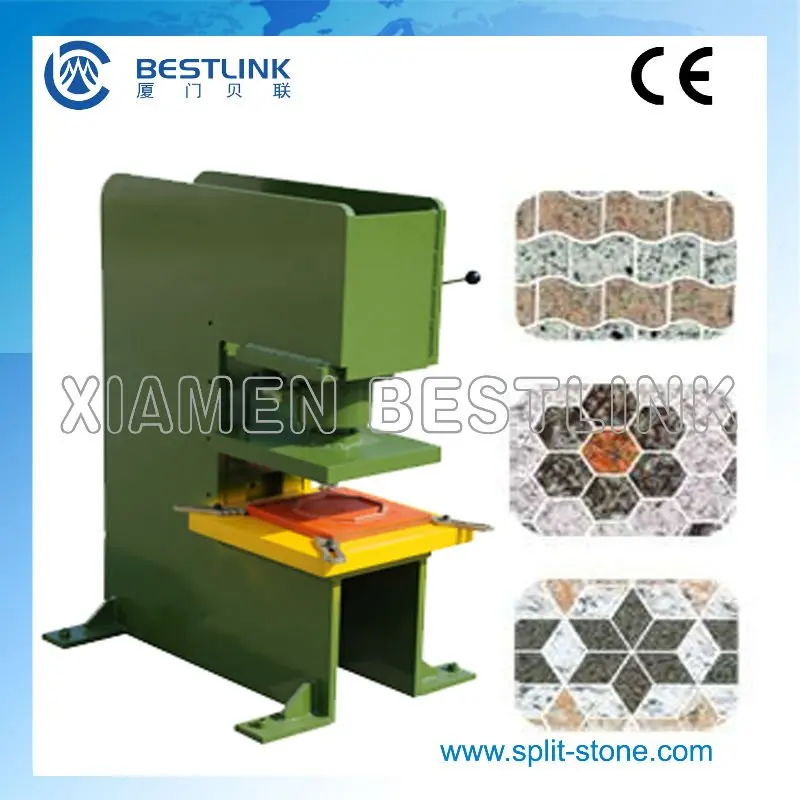

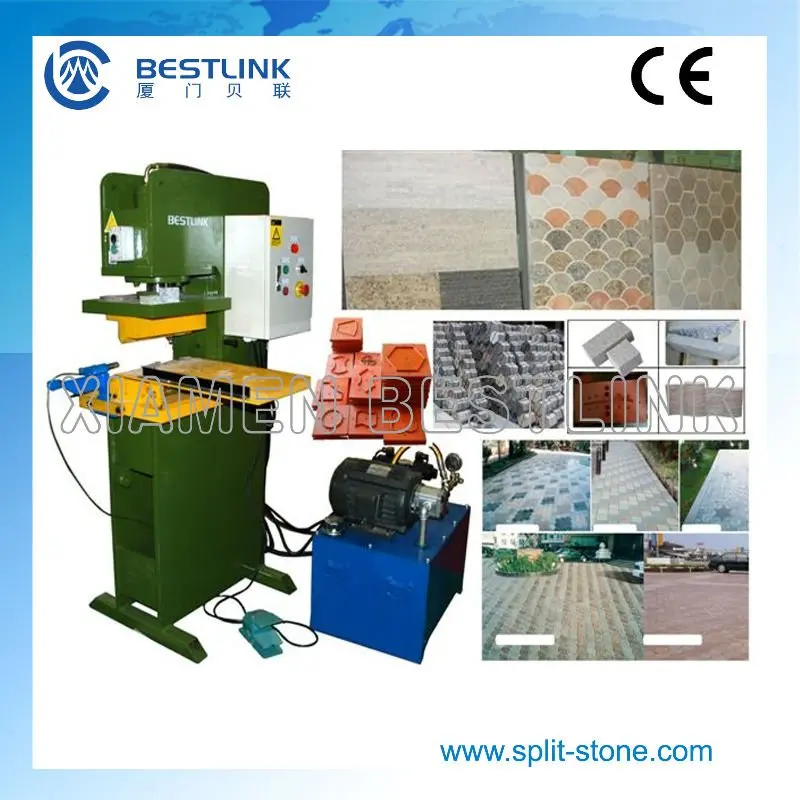

Hydraulic granite stone pressing cutting and stamping machine

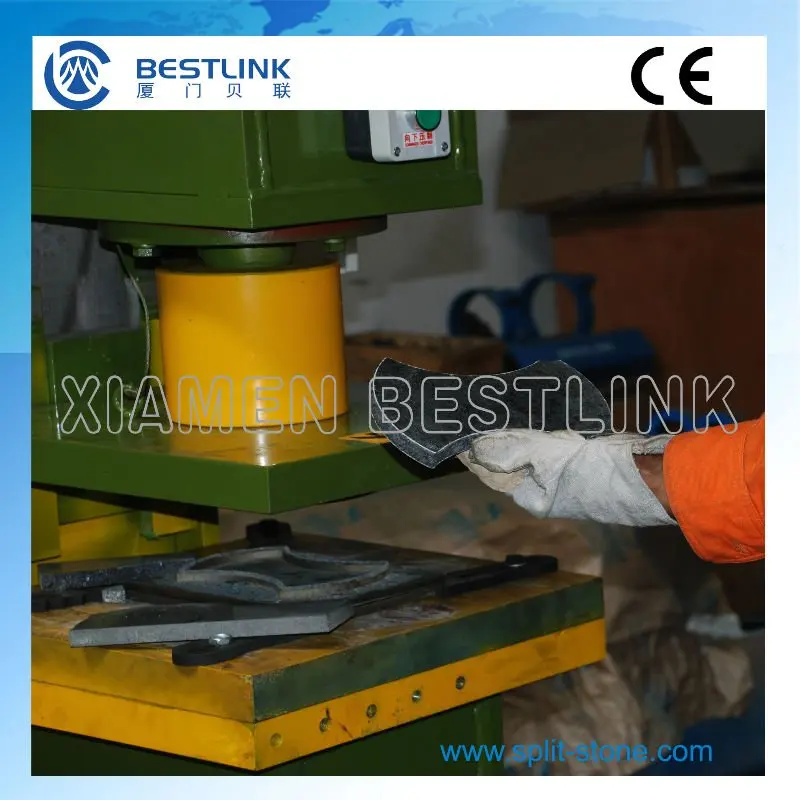

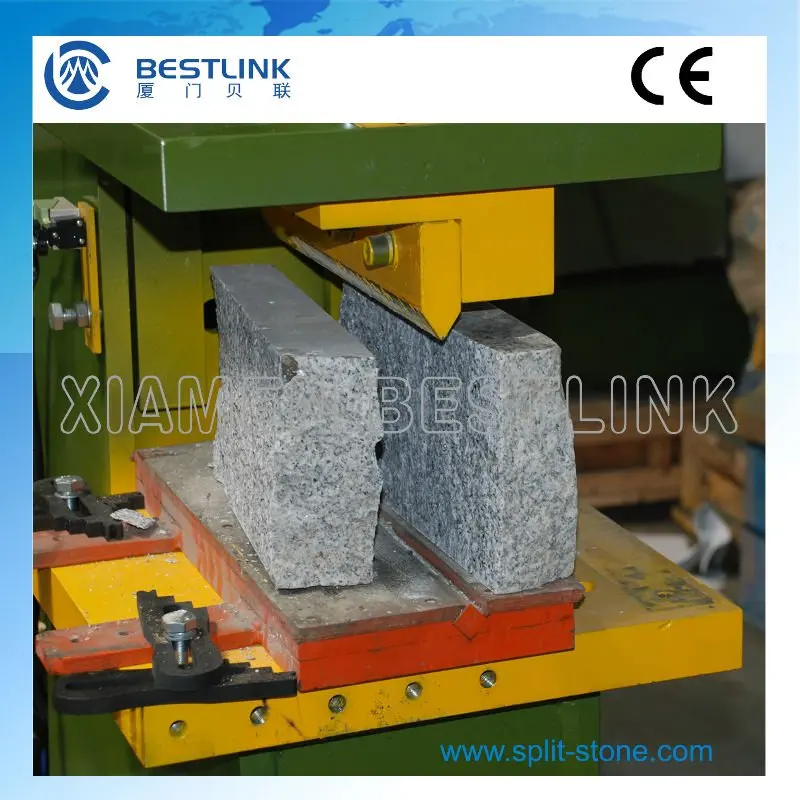

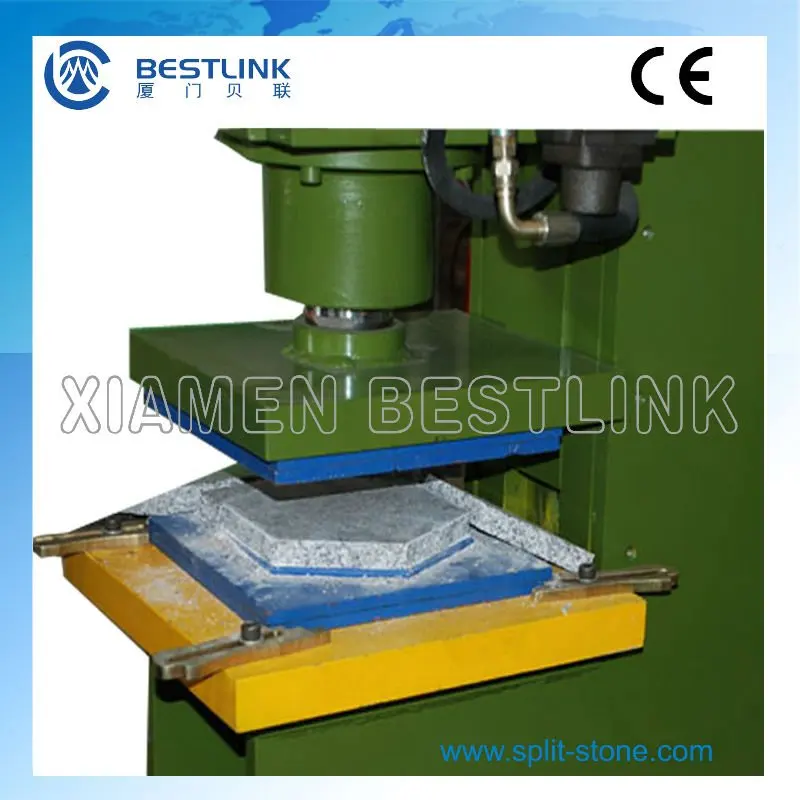

CP90 is specially designed for changing leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside; And it also has the function of splitting stone of  long bar; Furthermore, it could be used for natural face splitting; The CP-90 machine have the output around 50m²~100m² per day,certainlly,if the operators have very good experience and skill,the yield will be much more,the machine have very compact structure,it is easily operated and maintained.


To process the waste slabs into difference design paving slabs for plaza,street,villa and living

areas,which save the stone materials and protect the environment.it can press the thickness

of stone tile from 1cm to 5cm with 40 figure moulds.





 Tehcnial data for the most popular one CP-90:

Technical Data:
We can provide 2 types of this machine, they differ in the stamping power. One is 20T, the other is 40T.
They can process different slab size, one is 30cm*30cm*3cm, the other is 30*30*5cm.

Model

CP90-20T

CP90-40T

CP90SA

CP90FA

Hydraulic pressure (Mpa)

20

20

20

20

Splitting power (T)

20

40

40

40

Electric motor power (kw )

3.7

5.5

5.5

9

Max.slab stamping size (cm)

30*30*3

30*30*5

30*30*5

30*30*5

Max splitting length (cm)

30

35

Semi-automatic

Fully-automatic

Slab thickness (cm)

1-3

1-5

1-5

1-5

Machine size (cm)

80*100*150

80*100*150

80*100*150

230*95*185

Weight (kg)

500

580

650

1500

Fuctions

stamping,cutting,
splitting

stamping,cutting,
splitting

stamping

stamping,air
consumption 1m3/min.
