Concrete Demolition Tools Pneumatic Driven Hydraulic Rock Splitter

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets Concrete Demolition Tools Pneumatic Hydraulic Rock Splitter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
BS36/38/40 BS42/45
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Quarry, Mining, Tunnel, Construction etc
Usage:
Splitting Rock and Concrete
Color:
Blue, Green, Yellow
Model:
BS36/38/40 BS42/45
Whole set:
Pump pack and cylinder
Life time:
Depends on the materials you are going to use
Engine Model:
Electric, Diesel, Pneumatic, Gasoline
Feedback:
All clients give us best feedback
Type:
Rock Splitter
Keywords:
darda rock splitter
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exported standard Plywood crate for Concrete Demolition Tools Pneumatic Driven Hydraulic Rock Splitter
Port
Xiamen
Lead Time :
Within 25 days after receiving your T/T payment or L/C original

2018 Concrete Demolition Tools Pneumatic Driven Hydraulic Rock Splitter



Products features:

Hydraulic concrete & rock splitter is one of the efficient, safest and easiest ways of mining,quarring, demolition & removing mass and reinforced concrete.
Hydraulic Splitter models and parameters: BS36/38/40  BS42/45
Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.
BS36/38/40 uses Iron Cylinders, BS42/45 have both Iron and Aluminium Alloy cylinders.
Besides, we already successfully copied the same cylinder from German DardaIt have the exact same shape, same parts and same performance as the original one.



Products technical data:

Pump pack Technical data

1. Technical data of Diesel engine

Power modeloverall size(mm)Weight(kg)Oil pumping station reserves(L)Engine PowerWorking pressure(MPa)flux(L/m)Towable of splitter quantity(pc)
Diesel engine1150*1180*940260405.15KW55-602-131-10



2. Technical data of Gasoline engine

Power modeloverall size(mm)Weight(kg)Oil pumping station reserves(L)Engine powerWorking pressure(MPa)Flux(L/m)Towable of splitter quantity(pc)
Gasoline model1200*1170*800100407.5HP55-602-131-10



3. Technical data of electric engine

Power modeloverall size(mm)WeightOil pumping station reserves (L)Engine powerWorking pressure(MPa)FluxTowable of splitter quantity(pc)
 (kg)(L/M)
Electric motor 2350.75KW(220V/380V)55-600.71
384*280*62075303KW(380V)55-6021-3
   7.5KW(380V)55-60131-10

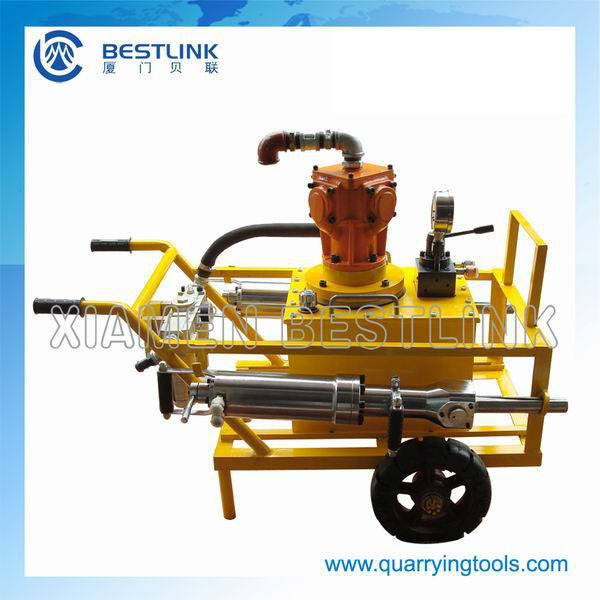

4. Technical data of pneumatic model

Power modeloverall size(mm)WeightOil pumping station reserves (L)rotating speed(r.p.m)Rated power(kw)Oil flux(L/m)Working pressure(MPa)Towable of splitter quantity(pc)
Air motor384*280*62070kg3020004.102-1355-601-10





Hydraulic splitting cylinder Technical data

Modelbore diameter requiredMin. bore depth requiredSplitting distanceSplitting timeTheoretic spliting powerActual split powerCylinder weight
BS36Φ36-38mm≥300mm10-40mm5-12s615T320T20kg
BS38Φ38-40mm≥400mm10-40mm5-12s615T380T22kg
BS40Φ40-42mm≥500mm10-40mm5-12s680T420T23kg
BS42Φ42-45mm≥600mm10-40mm5-12s780T480T32kg
BS45Φ45-48mm≥800mm10-40mm5-12s826T500T33kg





Accessories Technical Data
NameModelUnitweight(kg)
Lubricating greaseSpecial for hydraulic splitterTin2
oil distributorwith 3 outletpc1
Oil Pipestandard configurationset1
Transportation frame set42



More pictures for your reference:

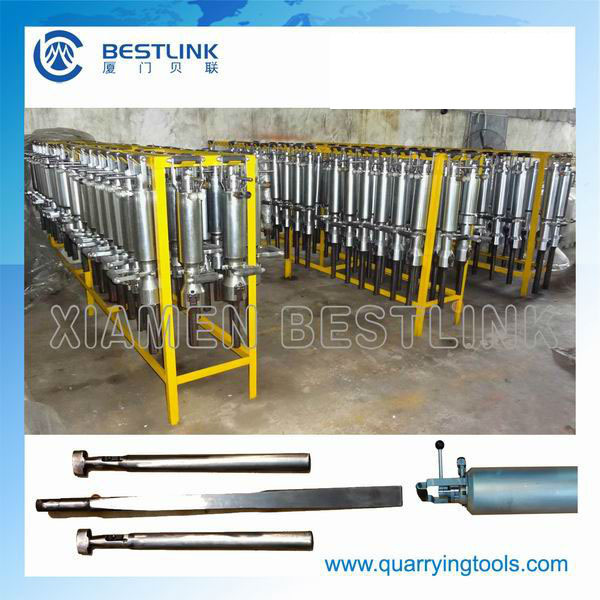

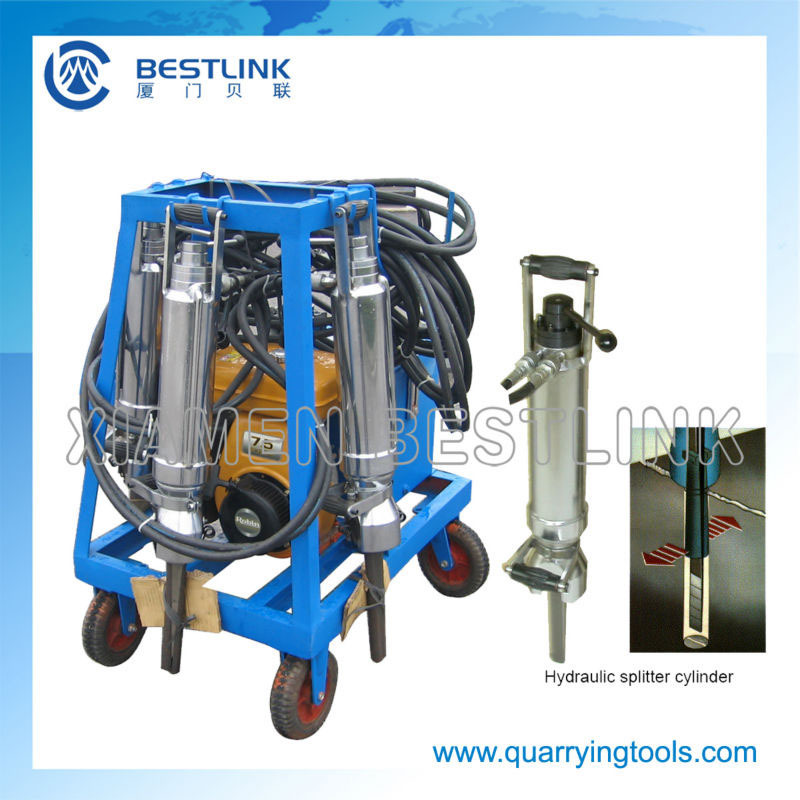

Here is the pictures for the rock splitter storage and more models for your reference:

Concrete Demolition Tools Pneumatic Driven Hydraulic Rock SplitterConcrete Demolition Tools Pneumatic Driven Hydraulic Rock SplitterConcrete Demolition Tools Pneumatic Driven Hydraulic Rock SplitterRock_and_Concrete_Hydraulic_splitter.jpg





Working pictures

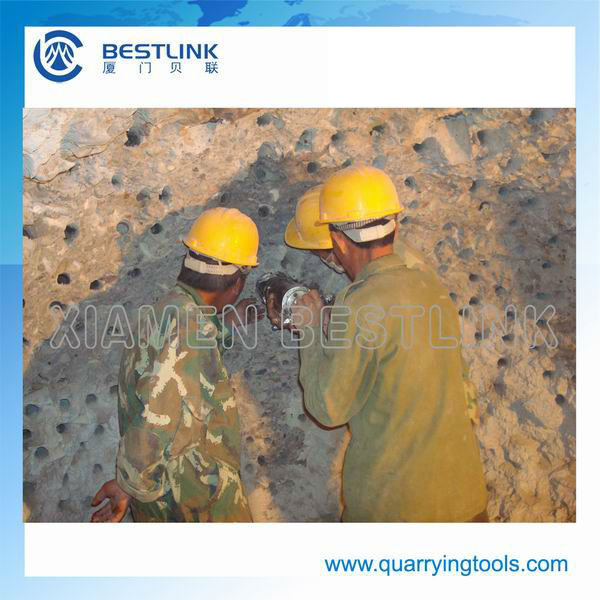

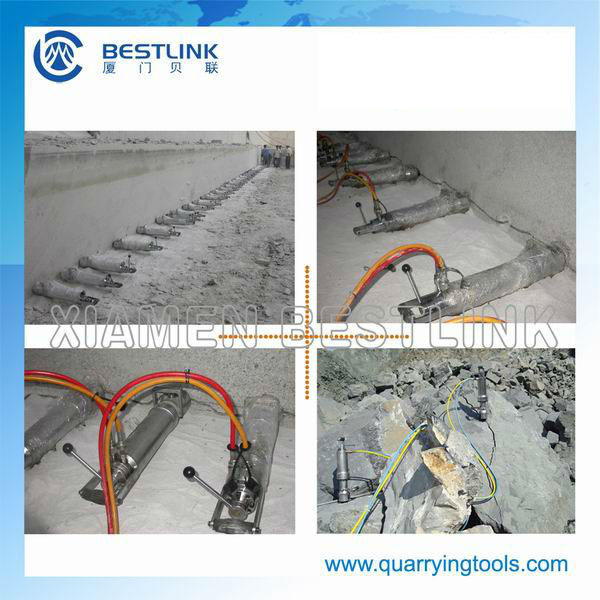

Here is the pictures to show the hydraulic rock splitter in the work site.

Concrete Demolition Tools Pneumatic Driven Hydraulic Rock SplitterConcrete Demolition Tools Pneumatic Driven Hydraulic Rock SplitterConcrete Demolition Tools Pneumatic Driven Hydraulic Rock Splitter
