Multifunctional Granite paving stone splitting machine, Stone recycling machine

FOB Reference Price:Get Latest Price
US $10,000-50,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
500 Set/Sets per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Production Capacity:
5Seconds/pcs
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
BRT
Voltage:
220v/380V/400V/415V/460V/600V
Power(W):
7.5-22 kw
Dimension(L*W*H):
1970*1200*3300mm
Weight:
2500 KG
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
ODM and OEM:
Yes
working pressure:
20-320Tons
HS Code:
84791090
Application:
marble, grantie,sandstone,basalt, limestone
Packaging & Delivery
Packaging Details
by plywood case
Delivery Time
within 25 days after receiving your payment

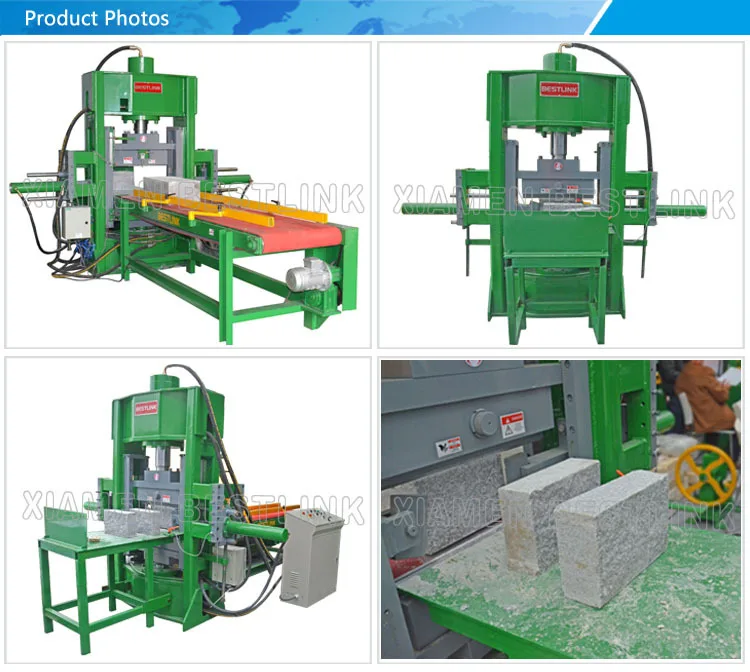

Our Hydraulic stone splitting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops.

It has floating teeth up and down,we also called it individual chisels which can make Hydraulic stone splitting machine tch the natural surface of the stones perfectly.

Every splitting machine can be integrated in a production line, especially designed according to your needs.



The main characters of our machines are:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and

through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.

2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient

power to the machine.

3.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.

4. We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers



1.The standard model we have:

Model No.

BRT320-1200*800-M

BRT160T-500*550

BRT70T-400*350

BRT40T-240*320

BRT20T-160*180

splitting pressure

320T

160T

70T

40T

20T

max.splitting width

1200mm

500mm

400mm

240mm

160mm

max.splitting height

800mm

550mm

350mm

320mm

180mm

adaption of upper/lower blade

36*20mm

30*15mm

20*10mm

15*10

10*7mm

rated power

22KW

15KW

11KW

11KW

7.5KW

rated voltage

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

electric current

42.5A

30A

22.6A

22.6A

15A

main oil cylinder data

Φ400/Φ280-850

Φ280/Φ200-600

Φ200/Φ140-360

Φ160/Φ110-340

Φ110/Φ80-200

oli advanced speed

40mm/s

76.6mm/s

108mm/s

167mm/s

96mm/s

overall size(L*W*H)

2370*1500*3840mm

1970*1200*3300mm

1500*1200*2520

1260*1000*2300

1145*1000*2030

weight

8000KG

5300KG

3200KG

2900KG

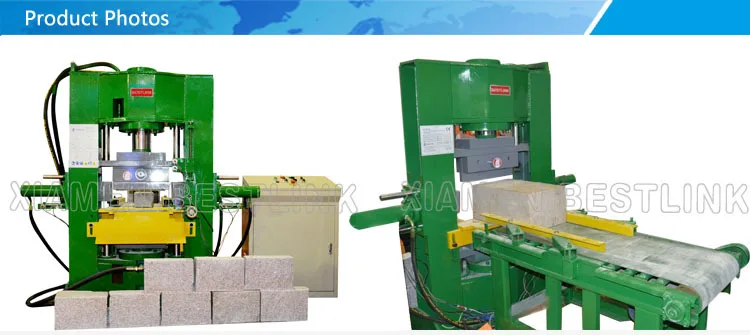

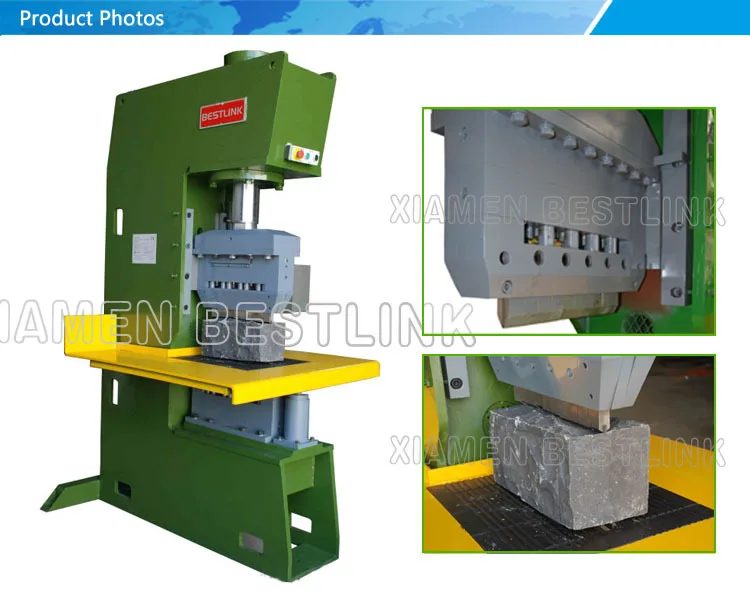

 C front type:

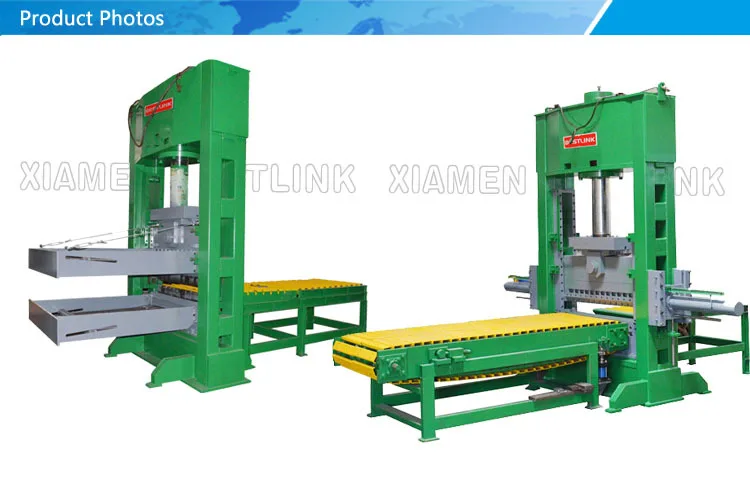

Bridge type:









2.Our new design and what we customize for our customers:

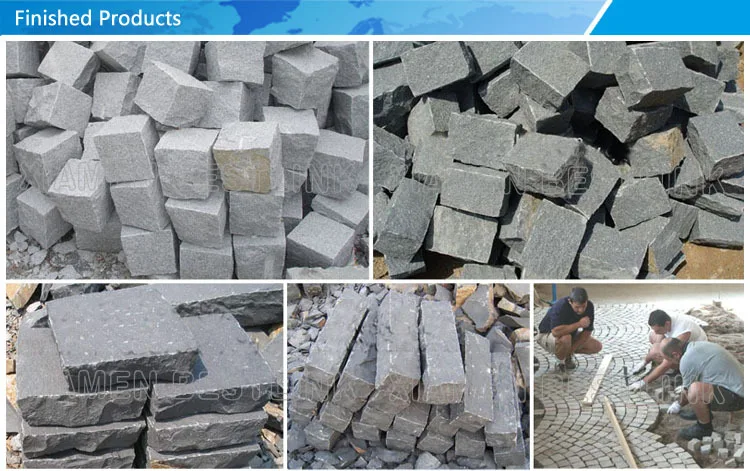

3.The finished products you can make:

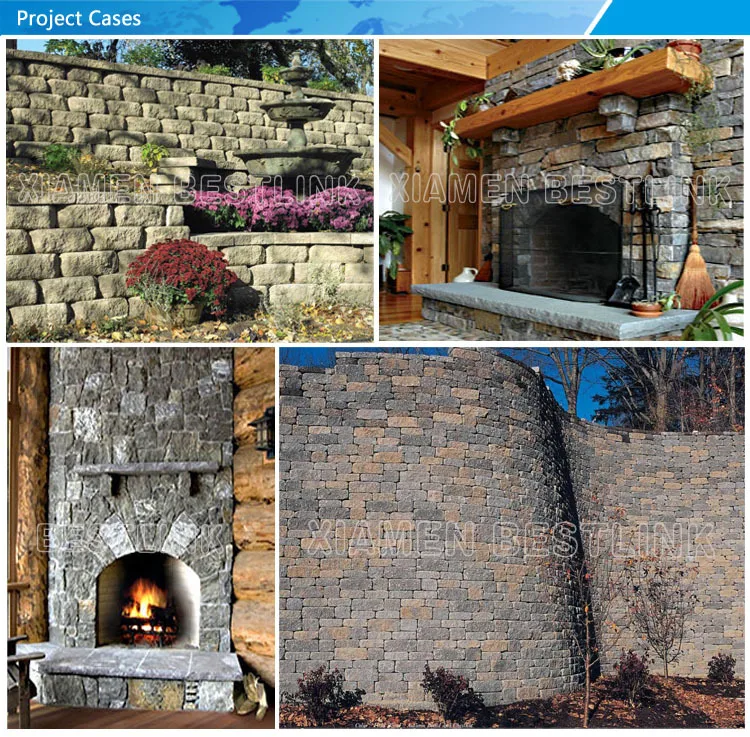

4.Project Cases

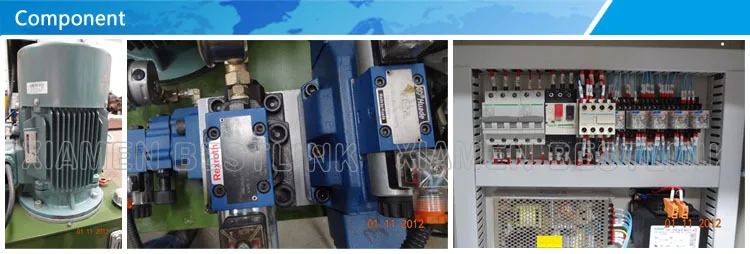

5.Parts and components:

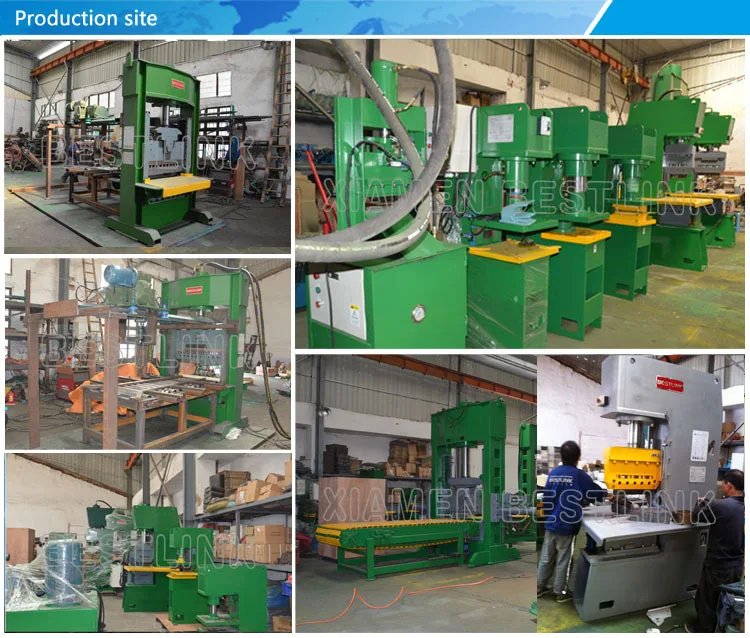

6.Production:

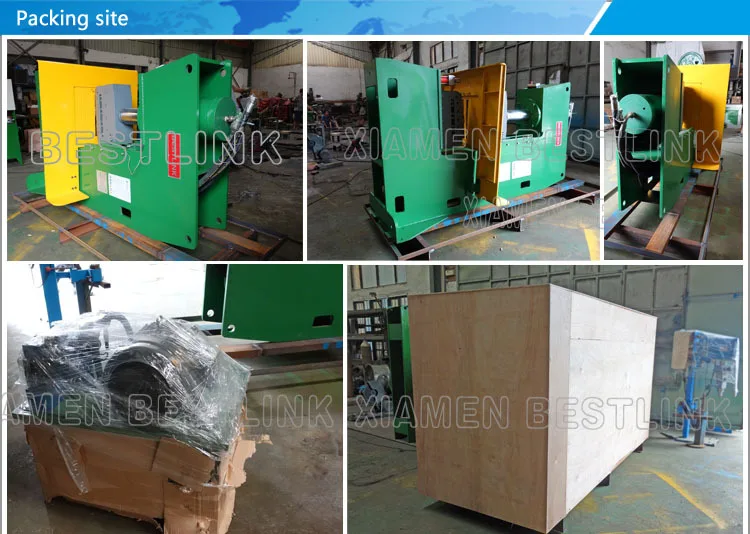

7.Packing site:

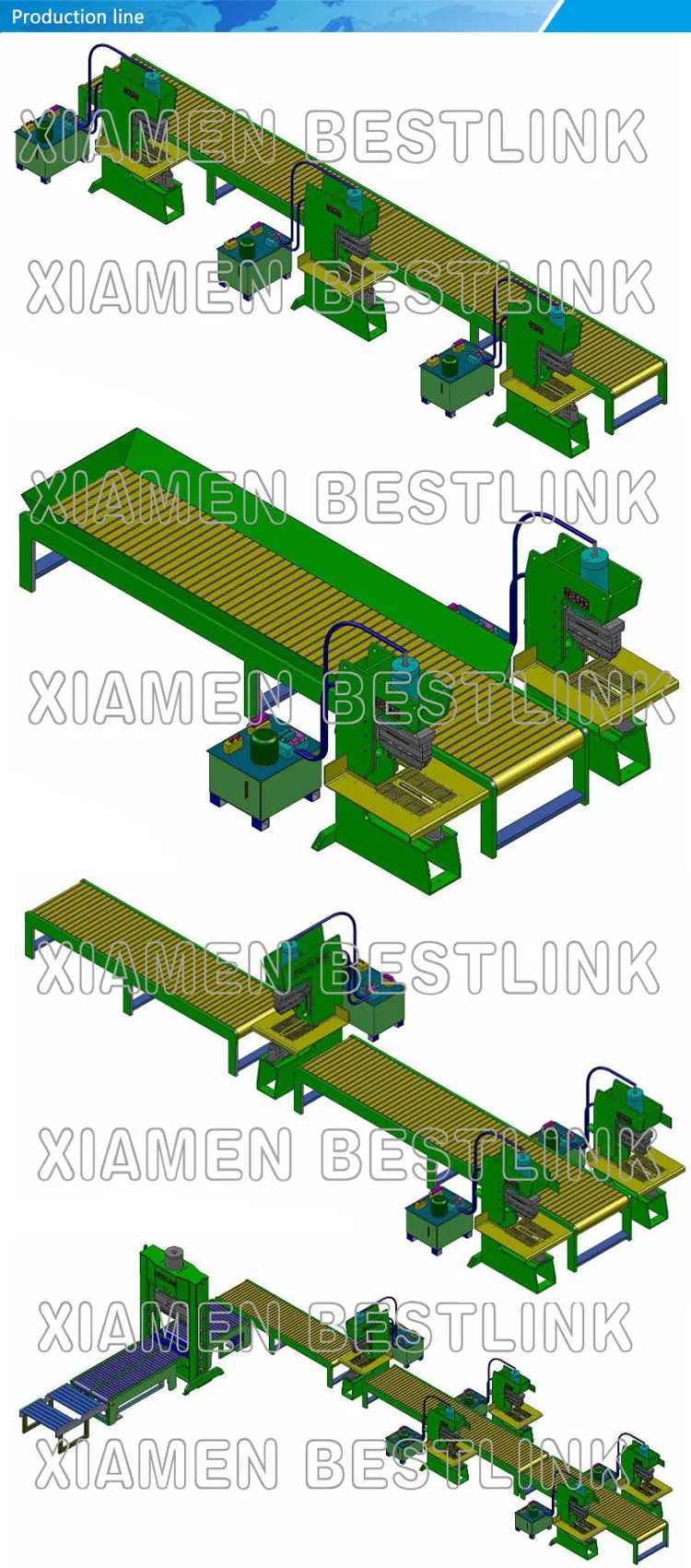

8.Production line:

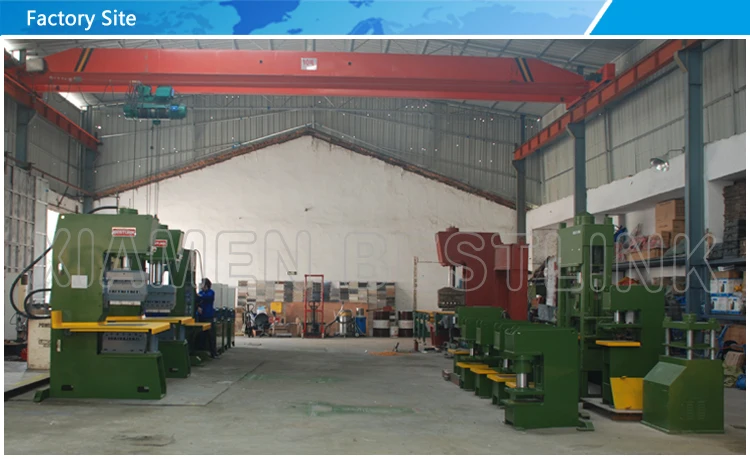

9.Factory site:

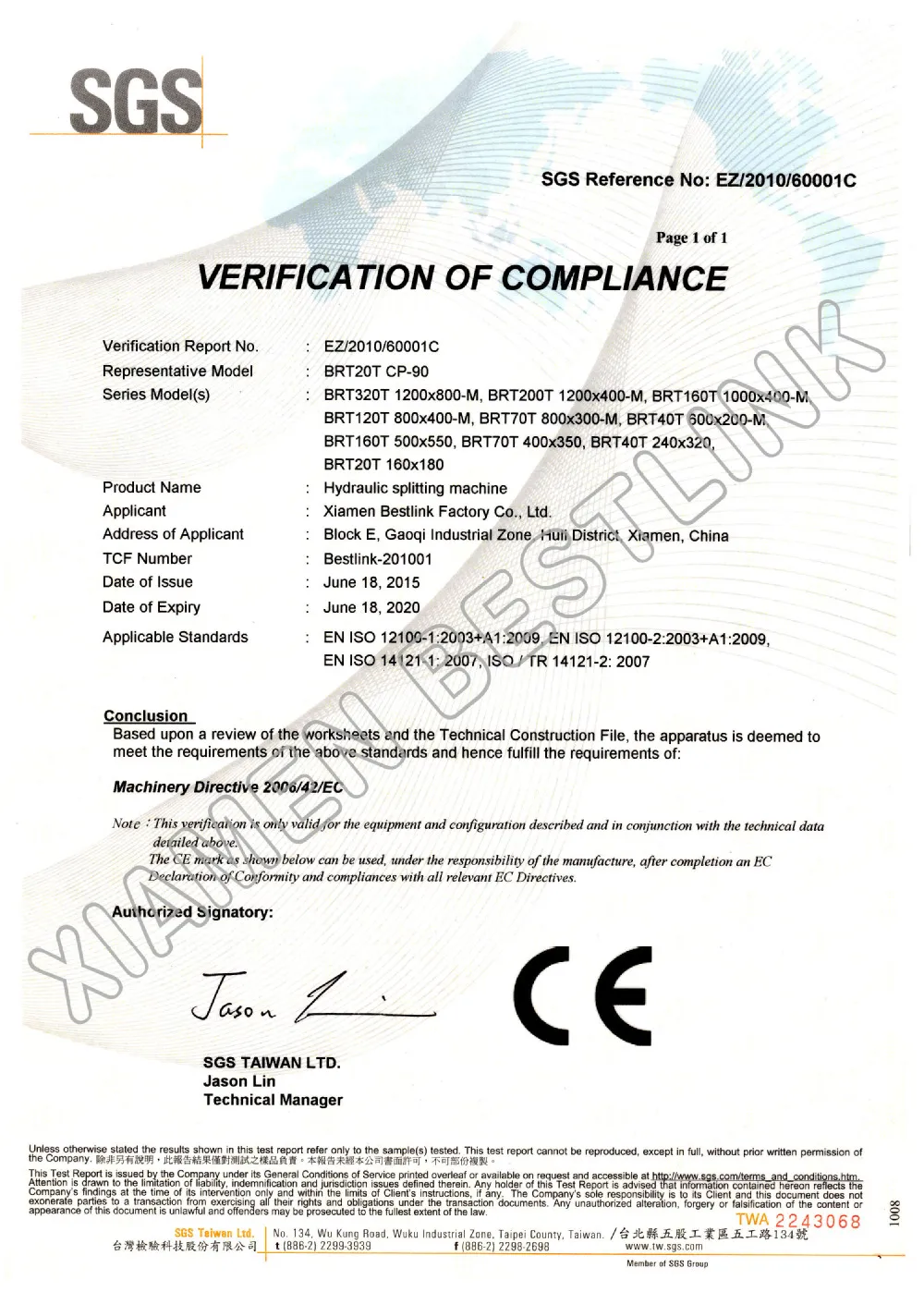

10.CE Certificate:







FAQ



The information you may like to know before order:
1. Methods of Payment:
  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order
  Within 30 days supplied from stock

3. Shipping way
  Normally it is by sea

4. Quality Control
  We have our own experienced QC.
  There will be strict inspection and testing for every order before shipping out.

5. After-Sale Services:
  a. Our sales team will reply for your question within 24 hours (Holidays Excluded)
  b. Technical Support will be available in any time
  c. Free replacement will provide once the failure confirmed caused by our product quality
