- Electric DTH Hammer Breakout Bench With Factory Price

FOB Reference Price:Get Latest Price
US $1,800-6,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
CX
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Main market:
All the mine, quarry,and DTH hammer whole saler.
Key word:
DTH Hammer disassemble bench,hammer breakout tool
Color:
Blue, yellow
Application:
Mine/quarry use this bench to Disassemble and disassemble DTH hammers
Power:
Totally manual one and electric one
Quality:
Durable quality and very convenient to handle the DTH hammers.
custom design:
Accept custom design
MOQ:
one set
Packaging & Delivery
Packaging Details
Plywood packing,wooden pack
Delivery Time
within 25 days after receiving the T/T payment
Product Description



Specifications



1. for disassembling the dth hammer

2. easy operation
3. low cost
4. for 3" to 8" hammers



Products Feature



 DTH  Hammer Breaout Bench

  It's a kind of bench to disassemble the dth hammers. The hammers range can be 3" to 8".

 It's a kind of bench to disassemble the dth hammers. The hammers range can be 3" to 30" (76mm to 760mm).



Electric

The standard motor request power source with 3phase, 380V,50Hz. we can adjust the motor as customers request





Main Technical Data



Operating principieby hydraulic jack
(manual)
by electric motor
ModelCX-5CX-8ECX3-8
Operate hammers3-5"6-8"3.5-8"
Length920mm1100mm1060mm
Width510mm620mm930mm
Height875mm875mm1050mm
Weight350kg350kg800kg

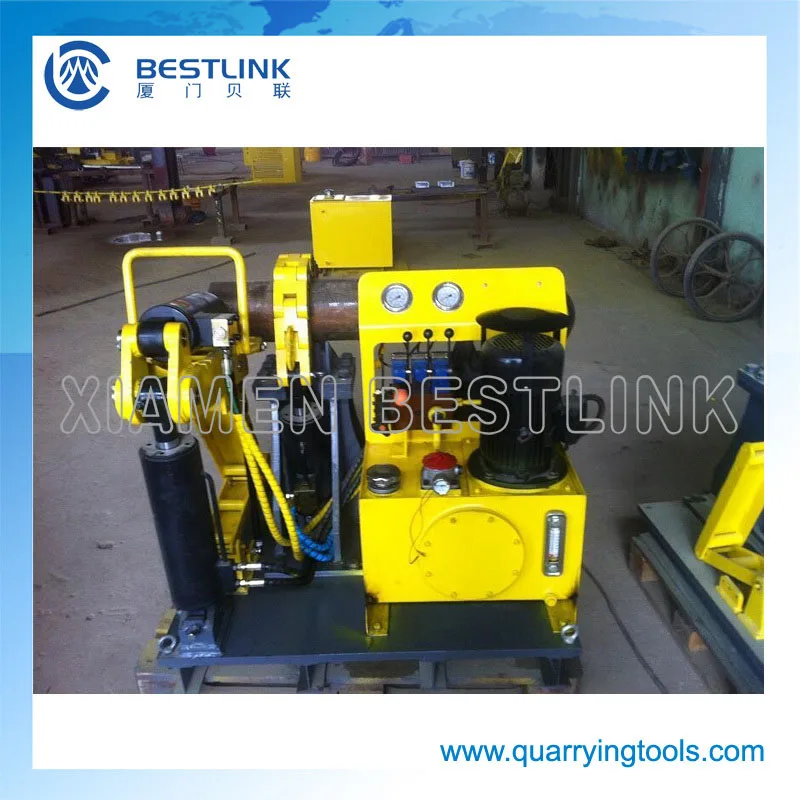

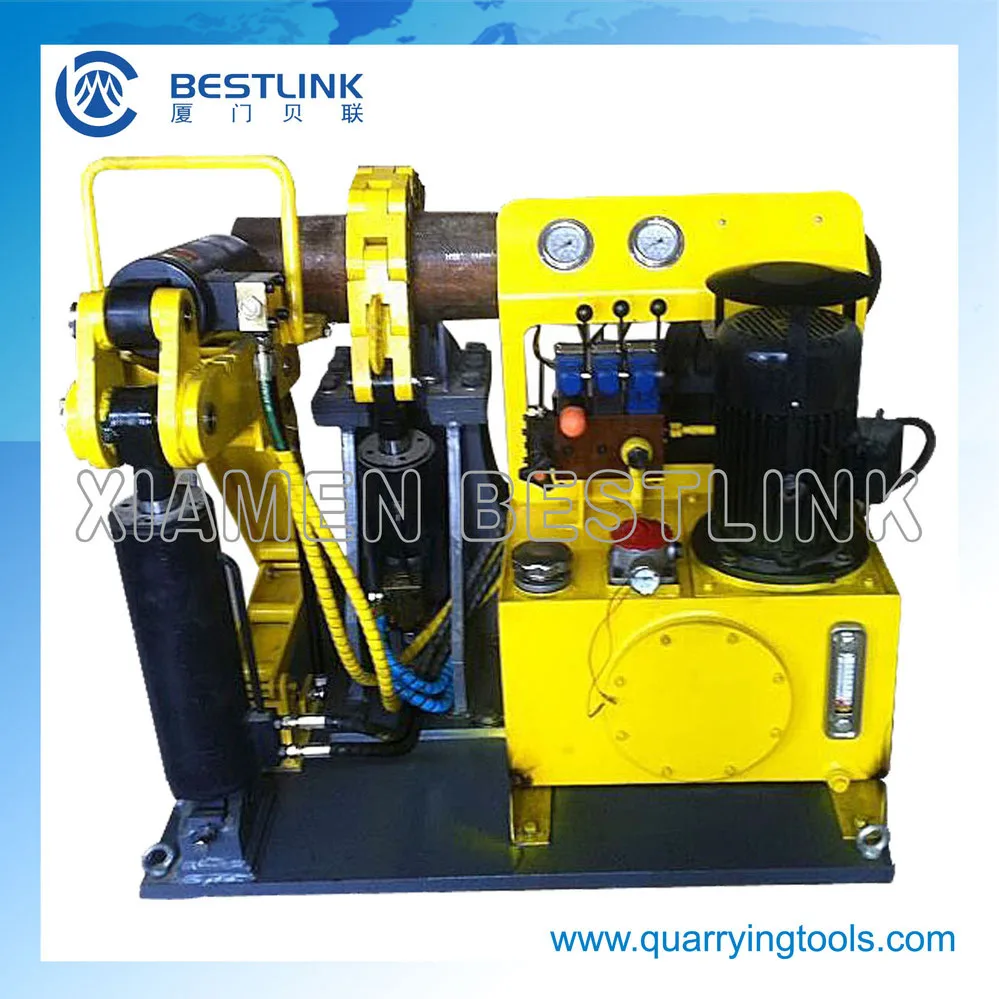

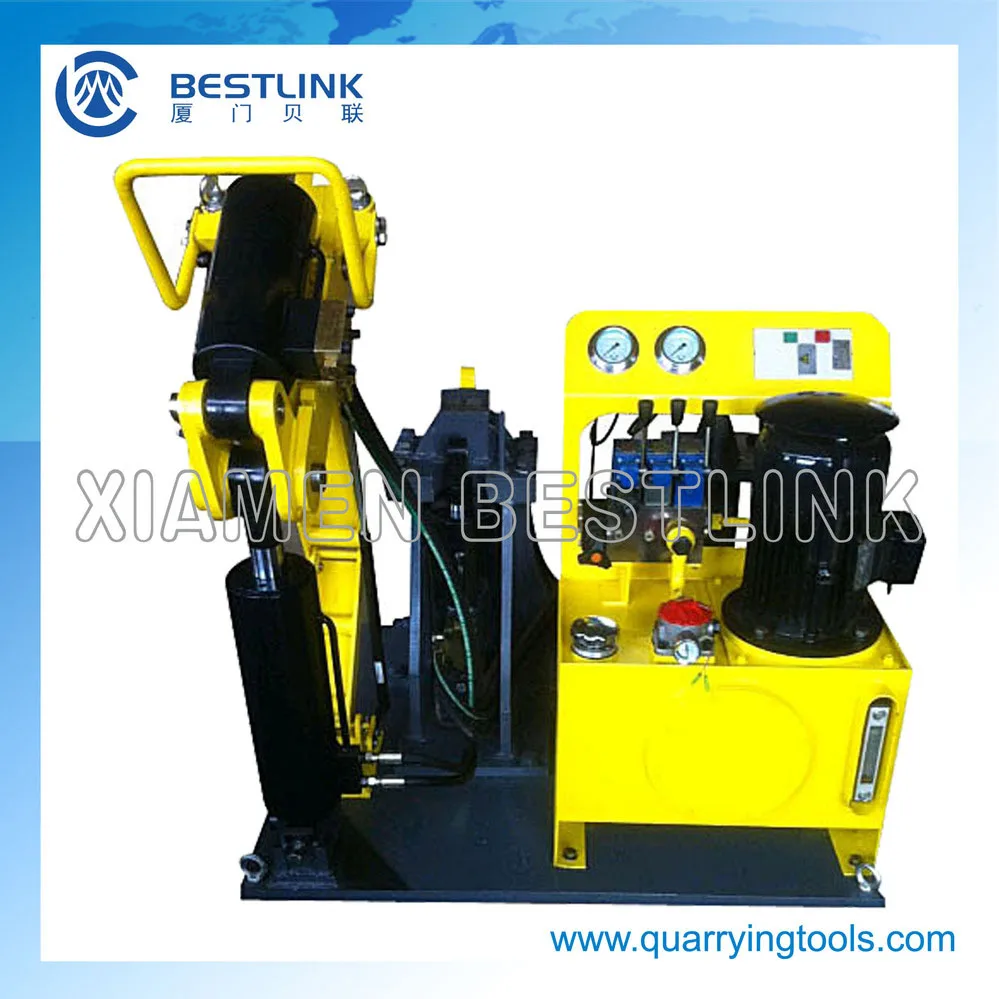

Products photos:







The process of flowsheet:





Packaging & Shipping



Factory site:
