Eccentric casing system for geothermal wells

FOB Reference Price:Get Latest Price
  • >=1
    US $1000.00
Supply Ability:
1000 Piece/Pieces per Month
Port:
Xiamen,China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
ODEX
Type:
Drill Bit
Machine Type:
Drilling Equipment
Material:
Carbide
Processing Type:
Casting
Use:
Well Drilling
Application:
Water well
Advantage:
superior performance
Usage:
Foundation Pit
Packaging & Delivery
Packaging Details
ply-wooden cases and pallet
Delivery Time
within 25 days after receiving the adavance payment

We are a leading manufacturer of rock drilling tools,like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Xiamen,Fujian,China.

Product specifications: Eccentric  casing system for geothermal wells

Type

Casing Tube OD(mm)

Casing Tube ID(mm)

Casing wall thickness(mm)

Guide Device max size(mm)

Reamed Dia (mm)

Casing shoe mini Dia(mm)

Pilot bit D (mm)

Hammer type

ODEX85

108

94

7

92

117

86

85

COP34/DHD3.5

ODEX90

114

101

6.5

99

125

92

90

COP34/DHD3.5

ODEX98

127

109

9

107

138

100

98

COP34/DHD3.5

ODEX115

146

126

10

123.5

155

117

115

COP44/DHD340/SD4/QL40

ODEX140

168

148

10

146

180

138

136

COP54/DHD350/SD5/QL50

ODEX145

178

158

10

156

192

147

145

COP54/DHD350/SD5/QL50

ODEX152

183

163

10

161

196

153

151

COP54/DHD350/SD5/QL50             COP64/DHD360/SD6/QL60

ODEX165

194

174

10

172

206

162

160

COP64/DHD360/SD6/QL60

ODEX190

219

199

10

196

234

187

185

COP64/DHD360/SD6/QL60

ODEX208

245

225

10

222

263

210

208

COP84/DHD380/SD8/QL80

ODEX240

273

253

10

251

305

241

240

COP84/DHD380/SD8/QL80

ODEX280

325

300

12.5

298

350

282

280

DHD112/DHD380

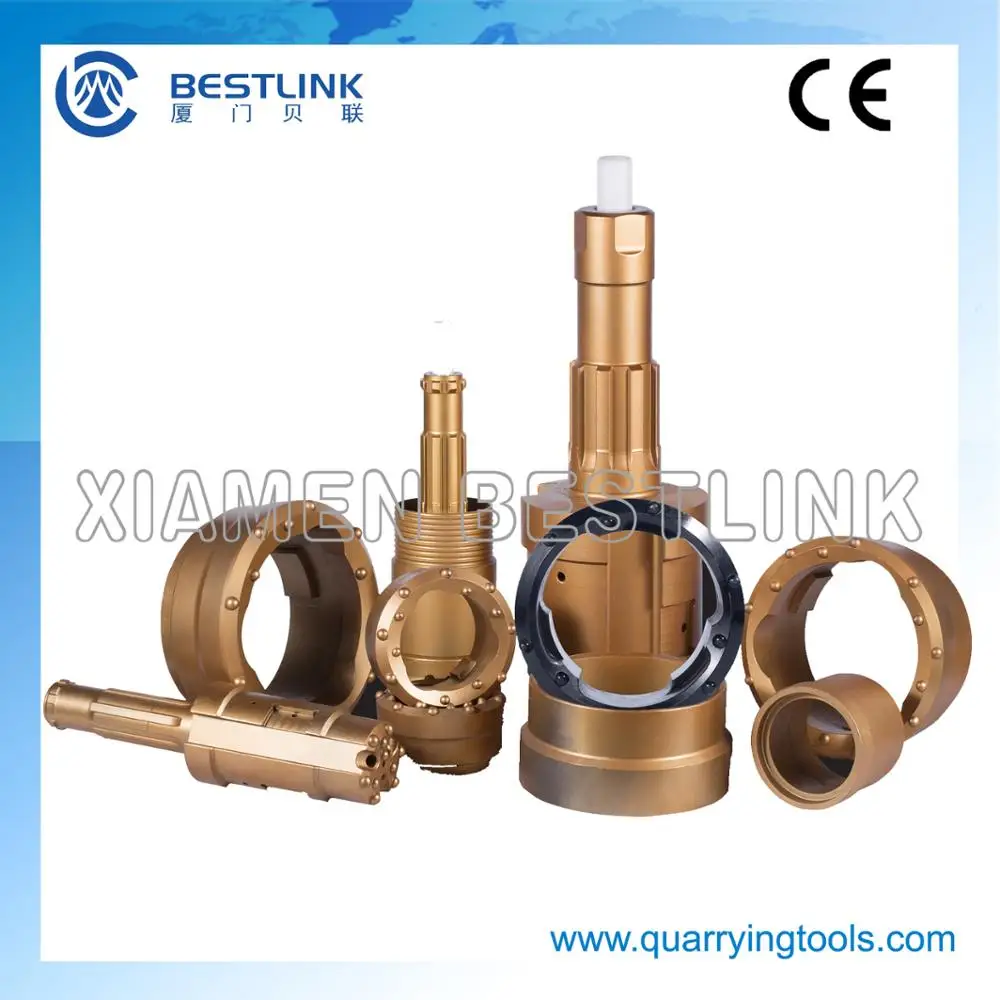

ODEX/Eccentric equipment enables you to drill and case deep holes

simultaneously in all types of formation, even those with large boulders.



The method is based on a pilot bit and eccentric reamer,which together drill a hole slightly larger than the external diameter of the casing tube. This enables the casing tube

to follow the drill bit down the hole.



When using ODEX, part of the impact energy is diverted to the casing tube via a shoulder on the guide device, which in turn impacts a special casing shoe at the lower end of the casing.







Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping.



Production time:

within 15-25 days after receiving the advance payment or full payment



Transportation:
according to your requests.


Package:
The material of packing is ply-wooden cases and pallet to avoid the damagement  in transportation.
