Rock Drilling Hex22*108mm Integral Drill Rod

FOB Reference Price:Get Latest Price
US $10-50 / Units | 20 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Shank Diameter:
19mm, 22mm, 25mm
Shank Length:
108mm
Type:
Drill Shank, Integral Drill Rod
Model Number:
Hex22 integral drill rod
Material:
Carbide
Processing Type:
Forging
Usage:
Rock Drilling, hole blasting
Application:
Mine and quarry, construction
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Wooden Cases or Cartons, or according to customer's requirements for China Factroy Mining Stone Drilling Integral Drill Rod
Port
Xiamen
Lead Time :
Within 25 days after receipt of your T/T payment or L/C original

Mining Stone Drilling Integral Drill Rod



Application

The integral drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.



Products Features

Integral Drill Rod is used by a hand-held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.

According to different application, different lengths are available from 400mm to 5000mm usually.



Products Photos

China Factroy Mining Stone Drilling Integral Drill Rod

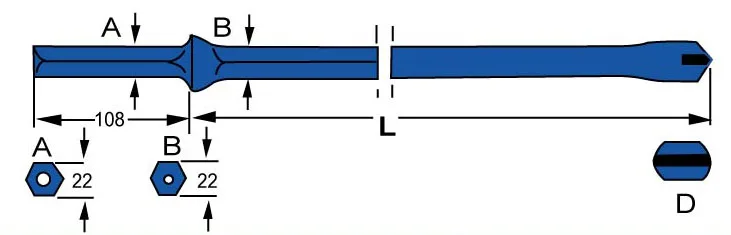

Shank(mm)Length(mm)Bits Dia D(mm)Weight(kg)
11 Series
Hex22x108800343
1600335.5
2400328
48002915.4
12 Series
Hex22x108800403
1600395.5
2400388
32003710.5
40003612.9
48003515.4
13 Series
Hex22x108400341.8
800333.1
1200324.3
1600315.5
2000306.7
16 Series
Hex22x108600352.4
1200344.3
1800336.1
2400328
17 Series
Hex22x108600412.7
1200404.6
1800396.6
2400388.7
