Quarry Rock Drilling Plug Hole Rod

FOB Reference Price:Get Latest Price
US $20-50 / Unit | 20 Unit/Units (Min. Order)
Supply Ability:
5000 Unit/Units per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbide, Carbide, 55SiMnMo
Processing Type:
Forging, Forging
Use:
Ore Mining
Type:
Drill Shank, Plug hole rod
Model Number:
Hex22 plug hole rod
Shank Diameter:
22mm
Shank Length:
108mm
Usage:
Rock Drilling, hole blasting
Application:
Quarry, Mine
Packaging & Delivery
Packaging Details
Wooden Cases or Cartons, or according to customer's requirements for Quarry Rock Drilling Integral Steel Plug Hole Rod
Delivery Time
Within 25 days after receipt of your T/T payment or L/C original

Quarry Rock Drilling Integral Steel Plug Hole Rod



 Our factory can offer many kinds of drilling tools, including chisel type bits, cross type bits, tapered drill rods, plug hole rod and integral drill rods and so on.



Products Features:



Plug hole rod are normally produces Hexagon 22*108 Drill Steel, where the dimension given are measured across the flat of the hexagon.



Plug hole rod are a fixed length with a shank at one end and a bit at the other, and are able to drill to a depth equivalent to their effective length.

The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.



To drill deep holes, the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.

To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.



Products technical data:



The plug hole rod in this brochure are the most cmmonly used.

For other bit diameters and lengths please contact us.

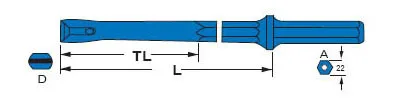

Shank Turned length (TL) chisel Bit DWeight
mmmmmmkg
Hex 19 x 1081507 20 220.6
20020 220.6
250200.8
Hex 19 x 82.528020 221
Hex 22 x 10815017 20 220.7
20017 20 221
25017 20 221.1
30017 20 221.7
20017 20 220.8
25017 20 220.9
30017 20 221.5
35017 20 221.8
55017 20 222.4
71017 20 222.9

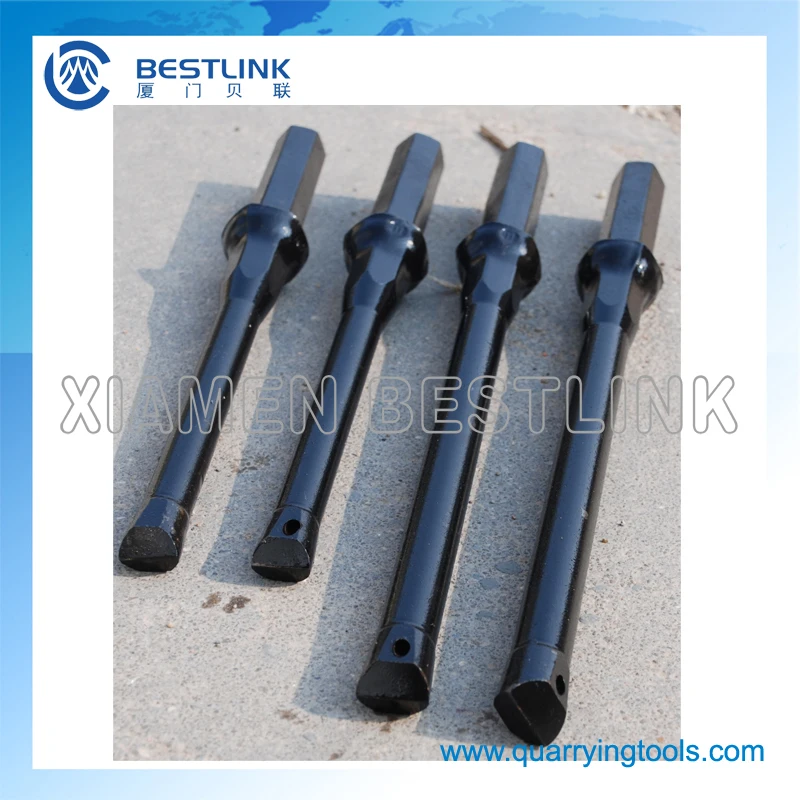

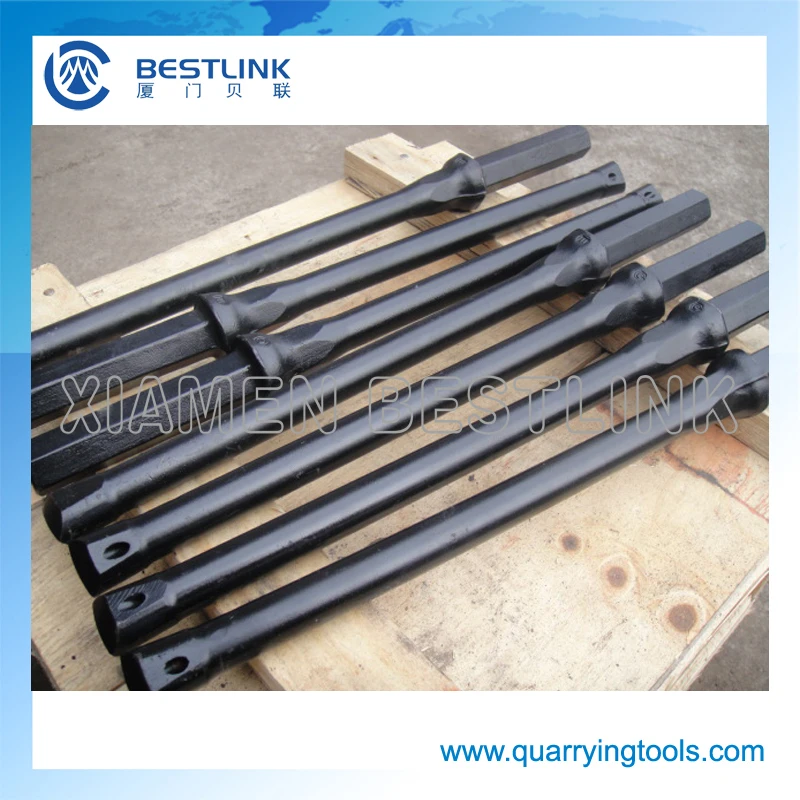

Products pictures for your reference:

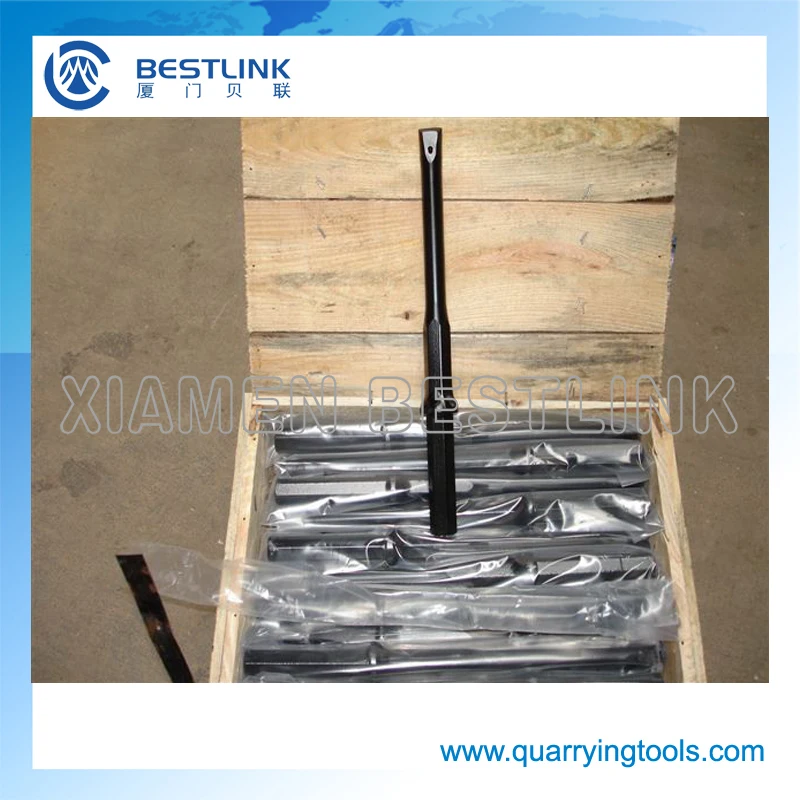

Packing pictures for plug hole rod:



The plug hole drill rod will be packaged by Wooden Cases or Cartons, or according to customer's requirements. Here is the picture for your reference:
