Thread Button Bits R32/R35/R38

FOB Reference Price:Get Latest Price
US $20-200 / Piece | 10 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BESTLINK
Model Number:
R32/R35/R38
Type:
Center Drill Bit
Material:
Tungsten Carbide
Use:
mining tools
Diameter:
33-152mm
Machine Type:
Drilling Tool
Carbide shape:
spherical, ballistic
Bit face:
FF, DC, Concave, Convex
Certification:
ISO2000
HS CODE:
82071990
Mining Object:
granite, marble, sandstone,limesone
Application:
drifting tunneling bench drilling
Packaging & Delivery
Packaging Details
PLYWOOD box or Carton
Delivery Time
Within 25 days after receiving your paymen

Thread Button Bits R32/R35/R38



Product Description







Thread Button drill Bit



Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



A: Drifting and Tunneling
thread: R25, R28, R32
diameter: 33mm-76mm

B: Bench Drilling
thread: R3212, R32, HL38, T38, T45, T51, T60
diameter: 48mm-152mm

C: Tube Drilling
thread: ST58, ST68
diameter: 89mm-152mm


OEM and ODM--- We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. Of air/water holes, carbide button shape and the face shape.

Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

Global Reputation--- The drill button bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. Our clients
Are all over the world, like Germany, Spain, Italy, Russia, Japan, India, Australia, Mexico, Colombia, Brazil,
Chile, South Africa...etc. We have very good reputation worldwide!



R25\R32 Thread Drill Bit



Bit dia.

(mm)

Tip size(mm)   No.of flushing holesWeight(kg)
GaugeFrontSideFront
415*82*7110.54
435*82*7110.55
455*92*8110.6
415*82*7110.5
435*82*7110.6
455*92*8120.8
485*92*8120.9
515*102*10121.1
606*93*9031.8
646*104*9032
706*124*10032.3
766*134*10032.5
898*125*12223
1028*136*12224
1158*136*13226
606*94*8031.7
646*94*9031.9
706*104*10032.2
768*116*9043.1
898*126*11045
1028*136*12047
1158*136*13049.6



R38 Thread Bit



Bit Dia(mm) Tip size(mm)   No. of flushing holesWeight(kg)
GaugeFrontSideFront
575*113*10111.6
645*123*11111.6
765*143*12122.4
648*94*9221.8
768*114*10222.6
898*126*11223.3
1028*136*12224.7
646*104*9031.7
706*114*10032.2
896*144*12034.3
648*95*8041.7
708*105*9042.2
768*115*10042.7
898*126*11043.3
1028*136*12044.7
608*93*9221.7
648*94*9222
708*104*10222.4
768*114*10223.2
898*125*12225.8
648*95*9041.9
708*105*10042.4
768*115*10043.3
898*126*11045.3

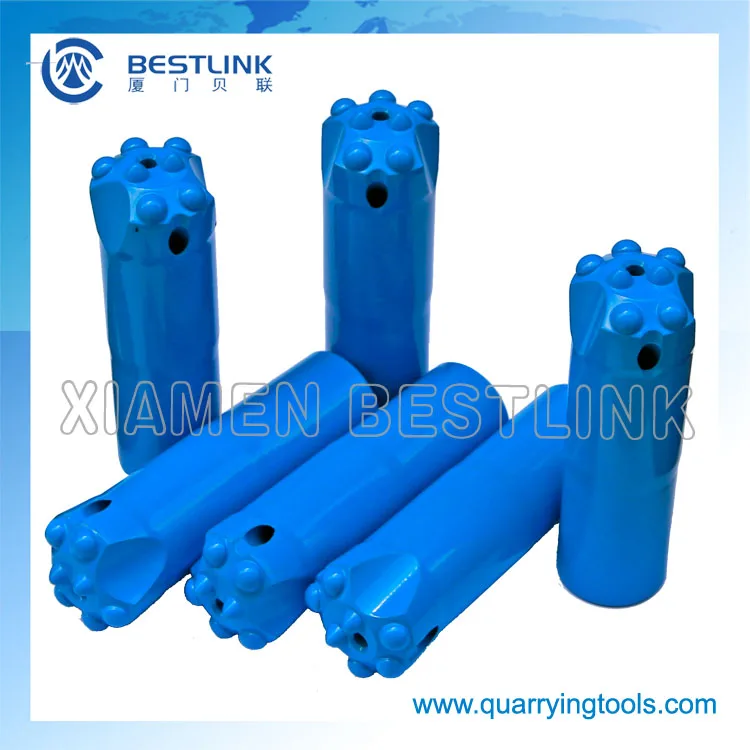

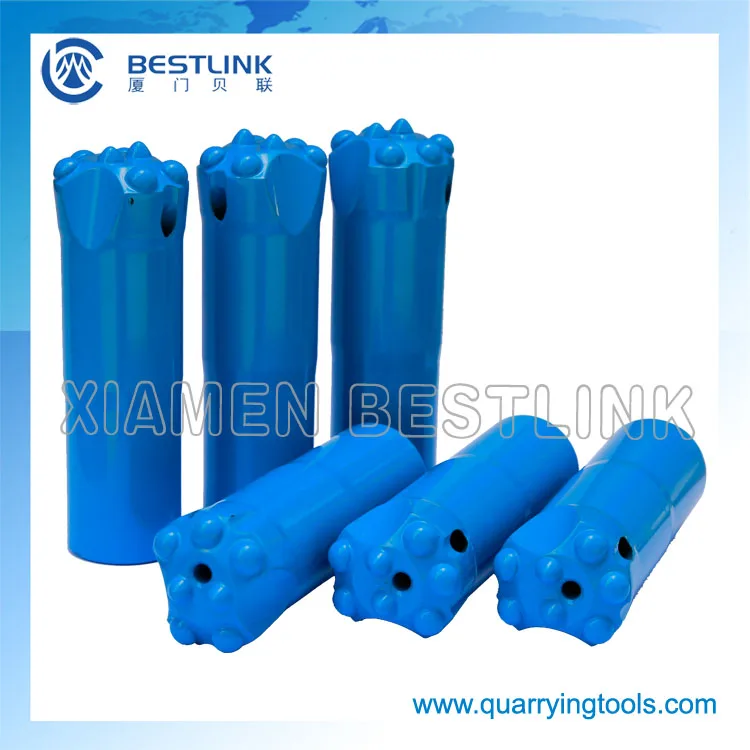

 Product pictures

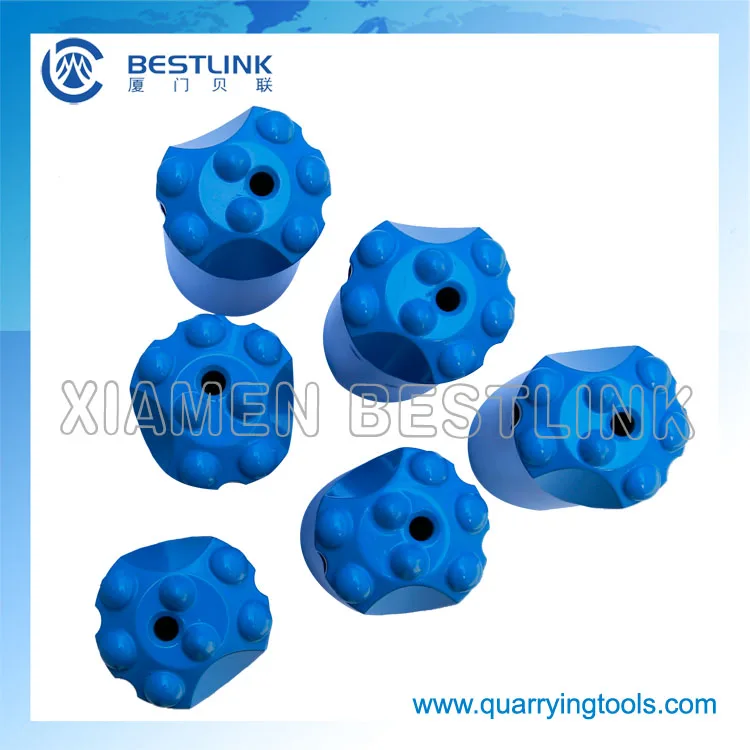

Face shape and carbide shape





Packaging & Shipping



All Items will be packed by PLYWOOD BOX for bulk order, or by Carton for small quantities.

Shipping Methods we will suggest BY SEA for more than 1CBM and BY AIR for less than 200kgs.

One piece for sample is available.
