chisel drill bit 36mm for hole drilling

FOB Reference Price:Get Latest Price
$4.00 - $12.00 / Piece | 20 Piece/Pieces (Min. Order)
Material:
Tungsten Carbide
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
BESTLINK
Model Number:
32mm 34mm 36mm etc...
Type:
Center Drill Bit
Use:
Masonry Drilling
usage:
rock drilling
diameter:
28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm
Color:
Red, Blue, Golden, Yellow
Certificate:
ISO2000
HS CODE:
82071990
suitable machine:
Y20 Y24 Y26 YT24 YT28
shank:
22x108mm, 19x108mm rod
taper angle:
6-12 degree
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton or wooden box
Port
Xiamen, Shenzhen, Tianjin, Shanghai, Ningbo
Video Description

chisel drill bit 36mm for hole drilling



Product Description


Product Characteristic:
1.Button bit taper angle: 4°,4°46″,6°,7°,11°,12°
2.Length: 50/55/71/80 mm
3.Diameter: 20-45 mm
4.Button bit shape: spherical/parabolic
5.Socket inside diameter: 15/19/22/25(mm)
6.Material and process: high quality alloy steel bar and tungsten carbides, through heat treatment

Application:
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Product Feature:
We can design and manufacture according to customers' samples or drawings of the Bit Dia., No. of air / water holes, carbide button shape and the face shape.
Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency.
According to the tungsten carbide insert, tapered button bits can be divided into the types of hemispherical, conical andparabolic button, etc.



Description  Diameter  Length  No. of buttons  Weight
  mm mm   kg
button bit 26 50 5 0.2
Taper:a=4°46" 6°,7°,11°,12° 27 50 5 6 0.2
Socket inside Dia. D=19, 22, 25 28 50 4 5 0.2
  29 50 4 0.2
  30 50 80 4 5 6 7 0.2 0.3
  32 50 55 71 80 5 6 7 8 0.2 0.22 0.3
  33 50 55 71 80 6 7 8 9 0.2 0.3 0.36
  34 50 55 6 7 9 0.22 0.3
  35      55 71 80 7 8 0.22 0.3 0.37
  36 50 55 4 5 6 7 0.3 0.35
  37 55 7 0.3
  38 50 55 4 6 7 0.25 0.35
  40 50 55 4 6 7 0.35
  41 50 55 71 7 0.35
  42 50 4 5 0.4
  45 50 55 71 6 7  0.5



Description  Diameter  Length  Weight
  mm mm kg
cross bit 24 71 80 0.18
Taper:a=6°,7°,11°,12° 26 71 80 0.19
Socket inside Dia. D=19, 22, 25 28 71 80 0.19
  29 71 80 0.2
  30 50 67 71 80 0.3
  32 50 67 71 80 0.3
  33 71 80 0.32
  34 67 71 80 0.34
  35 67 71 80 0.35
  36 71 80 0.36
  38  67 71 80 0.42
  40 71 80 0.43
  41 71 0.45
  42 69 80 0.46
  44 80 0.47
  45 80 0.5
  46 80 0.51
  48 80 0.53
  50 80 0.6
  55 85 0.7



Description  Diameter  Length  Weight
  mm mm kg
chisel 20 65 0.15
Taper:a=4°, 6°,7°,11°,12° 22 65 0.15
Socket inside Dia. D=15,19, 22, 25 25 69 0.15
  28 60 0.2
  30 55 80 0.2
  32 55 64 71 80 0.25
  34 71 80 0.29
  36 71 80 0.35
  38 71 80 0.4
  40 71 80 0.42
  42 71 80 0.42
  45 71 80 0.45




Packaging & Shipping

Normally the bits are packed by CARTON or WOODEN BOX.

For small orders less than 20pcs, we suggest shipping by courier (express).

For medium quantity like 50pcs, we suggest shipping by courier or by air.

For bulk orders, we suggest shipping by sea.

All shipping can be handled by us.



Our Services




We have two main business field:
1) All Drilling and Quarrying equipments
website: www.quarryingtools.com
2) Natural Stone Processing/Cutting/Splitting machines
website: www.split-stone.com

Our products range:
1. Expansive mortar (non-explosive demolition agent, soundless cracking agent)
2. Hand-held rock drill Y6,Y20, Y24, and Y26 (pneumatic),TY24C
3. Fully hydraulic rock drill BH26, BH28 (with pushing cylinder)
4. Pneumatic rock drill with pushing air-leg YT18, Y19A,YT24, YT28
5. Internal combustion rock drill (hand held, gasoline) YN27
6. Line drilling machine
7. DTH driller, diamond wire saw
8. Button bits, cross bit, chisel bits
9.Plug hole rod, Extension rod, shank adapter,coupling sleeves
10. DTH hammers & bits,DHD, COP, IR, Bulroc and SD series
11. Diamond wire rope, hydro-bag (steel), air bag (polymer) for blocks pushing
12. Stone cutter for block cutting
13. Hydraulic splitting machine
14. Wedges & feathers
15. Hose (for air, water, hydraulic...)

Company Information

 Xiamen Bestlink Factory Co., Ltdis committed to provide the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
we offers a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
With years of experience,our quality products are being exported to more than 45 countries all over the world including USA, and Europe with high reputation.



FAQ





1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Within 10 days supplied from stock
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Sale Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality

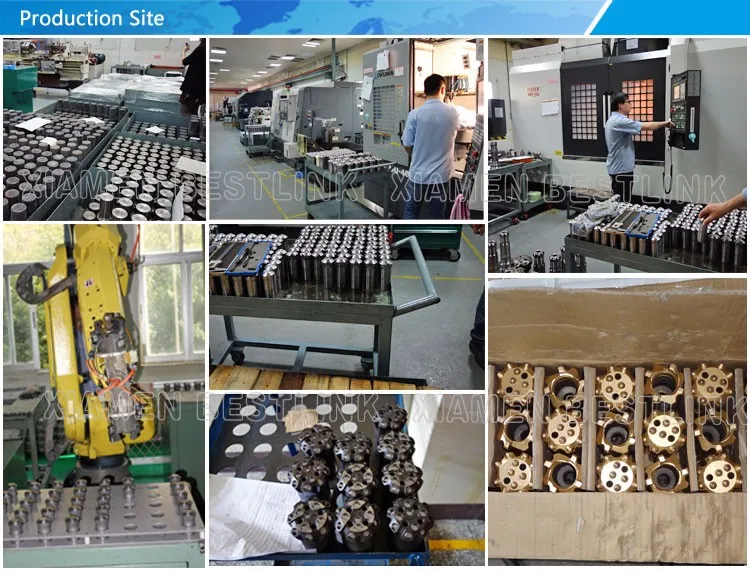

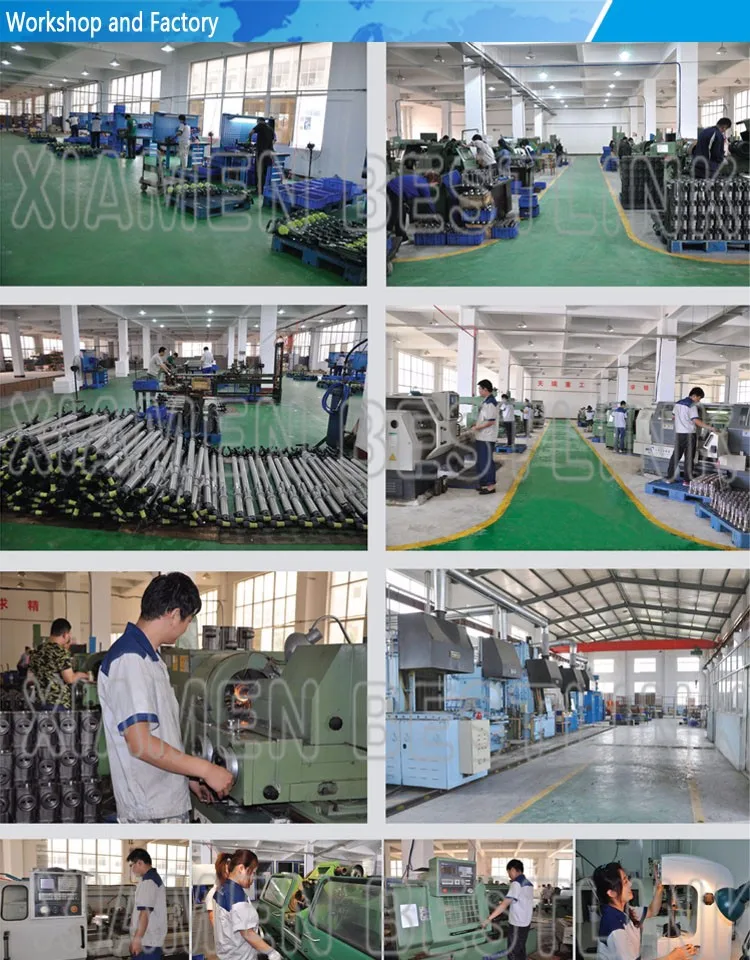

Factory and Workshop
