2021 Hole opener R32 6 degree pilot adapter reaming button drill bit

FOB Reference Price:Get Latest Price
$20.00 - $150.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
Hole opener R32 6 degree pilot adapter reaming button drill bit
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
6 months
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Energy & Mining, Construction works
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Place of Origin:
Fujian, China
Brand Name:
BESTLINK
Type:
DRILL BIT, Reaming Bits and Pilot Adaptors
Machine Type:
Drilling Tool
Certification:
ISO9001
Material:
Carbide
Processing Type:
Forging
Use:
Coal Mining
Bits Diamter:
64-152mm
Drill bits Model:
Button Bit, Chisel Bit
Usage:
Hard rock drilling
Tapered degree:
6 / 11 / 12 degree
Thread:
R28/R32/T38/T45/T51
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month Reaming bits
Packaging & Delivery
Packaging Details
Plywood case or carton for reaming bits
Port
Xiamen
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 25 To be negotiated

Aplication

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Large diameter service holes from level to level for drainage, electrical cable or pipe lines routinely used to ream cut holes for development rounds and for long hole blasting of drop raise.

Product Description
  • Reaming bits were widely used in quarrying or mining for blast hole drilling, with pilot adaptors, the drilling direction can be ensured and accurate. Pilot holes are drilled depth and then reamed out to a larger diameter in a second pass required when hole diameter exceeds the capabilities of the rock drill and drilling tools available.
  • Specification

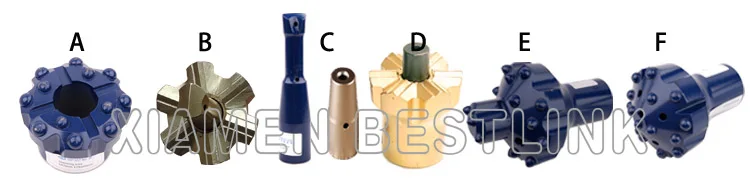

PIC. Model Dia. Gauge button front button taper products no.
A 6° Taper reaming button bits (shperic or parabolic buttons) 64 8*Φ9mm 2*Φ10mm KTQ1264-6-1
64 8*Φ9mm 4*Φ8mm KTQ1264-6-2
65 8*Φ9mm 4*Φ8mm KTQ1265-6
76 8*Φ10mm 4*Φ10mm KTQ1276-6-1
76 8*Φ10mm 4*Φ9mm KTQ1276-6-2
76 8*Φ11mm 2*Φ11mm KTQ1276-6-3'
76 7*Φ11mm 4*Φ11mm KTQ1176-6-3''
76 8*Φ14mm 4*Φ13mm KTQ1276-6-4
89 8*Φ12mm 4*Φ12mm KTQ1289-6-1
89 8*Φ12mm 4*Φ11mm KTQ1289-6-2
89 8*Φ12mm 4*Φ10mm KTQ1289-6-3
89 8*Φ13mm 4*Φ10mm KTQ1289-6-4
89 8*Φ12mm 4*Φ11mm KTQ1289-6-5
102 8*Φ14mm 4*Φ12mm KTQ12102-6
12° Taper reaming button bits (shperic or parabolic buttons) 89 8*Φ12mm 4*Φ10mm 12° KZQ1289-12
102 8*Φ12mm 4*Φ12mm 12° KZQ12102-12-1
102 8*Φ14mm 4*Φ12mm 12° KZQ12102-12-2
127 10*Φ13mm 8*Φ13mm 12° KZQ18127-12-1
127 10*Φ13mm 10*Φ13mm 12° KZQ18127-12-2
B 6° Taper chisel reaming bits 60 carbide:12*8mm (4pcs) KTS460-6
64 KTS464-6
65 KTS465-6
70 KTS470-6
76 carbide:12*10mm (4pcs) KTS476-6
80 KTS480-6
89 KTS489-6
10° Taper chisel reaming bits 70 carbide:12*8mm (6pcs) 10° KTS670-10
75 KTS675-10
80 KTS680-10
90 KTS690-10
100 carbide:12*10mm (6pcs) KTS6100-10
120 KTS6120-10
C Pilot adaptors 6° chisel:Φ26/28*12*8mm L=240/300mm,thread:R25/28/32*12.7mm,6°
Pilot adaptors 12° chisel:Φ35/40*15*10mm L=250mm,thread:R25/28/32*12.7mm,12°
D Thread chisel reaming bits 60 carbide:12*8mm (4pcs) RF25 KTS460-25RF
70 KTS470-25RF
80 carbide:12*10mm (6pcs) RF32 KTS680-32RF
90 KTS690-32RF
100 KTS6100-32RF
120 KTS6120-32RF
130 RF38 KTS6130-38RF
150 KTS6150-38RF
E Integral reaming button bits 89 12*Φ11mm 2*Φ11mm+1*Φ10mm R32/R38*12.7 KZQ89
102 12*Φ12mm 2*Φ12mm+1*Φ10mm R32/R38*12.7 KZQ102-1
102 12*Φ14mm 2*Φ10mm+1*Φ10mm R32/R38*12.7 KZQ102-2
127 8*Φ14mm 8*Φ12mm+2*Φ12mm R38*12.7 KZQ127
F Dome reaming bit (shperic or parabolic buttons) 76 9*Φ13mm 1*Φ13mm R32/T38/T45 DFR76
89 14*Φ13mm 1*Φ13mm R32/T38/T45 DFR89
102 16*Φ13mm 1*Φ13mm R32/T38/T45 DFR102
127 18*Φ13mm 1*Φ13mm R32/T38/T45 DFR127
152 18*Φ14mm 2*Φ14mm T45/T51/ST58/ST68 DFR152-1
152 9*Φ16mm 6*Φ16mm ST58/ST68 DFR152-2




Factory and Workshop

Product Process

Materials: Tungsten carbide and high strength alloy steels.

Processing: CNC milling and proprietary "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand ,military grade requirements of heat-treatment guarantee durability .

Packaging & Shipping

Packing details can be customized as per your requirement (plywood case, plastic box or carton...)

Timely shipment can be made upon our negotiation.

Our Services

We have two main business field:

1) Rock drill tools for quarrying and mining: www.quarryingtools.com

2) Natural Stone Processing/Cutting/Splitting machines: www.split-stone.com

Our products range:

A. Rock drill tools, including small hole,drifting,bench and products drilling, down-the-hole drilling;

B.Chisel bits, button bits regrinding system.

C.Non-explosive demolition, cracking agent.

D.Natrual face stone processing system, including hydraulic splitting machine, stamping machine, mosaic stone making machine,decoractive stone breaking machine...

Company Information

About Us

1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.

2. We have advanced technology and equipment.

3. Our technician has more than 36 year's professional working experience.

4. Rock drilling tools are exported throughout the world. Main market: Brazil, Chile, Colombia, Uruguay, Australia,Ukraine,Russia, ,Norway, Turkey, USA,Canada, pakistan, Malaysia, Thailand, India, etc.

FAQ

The information you may like to know before order:

1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight,onetouch.cn,Escrow,Paypal

2. Handling time for an order

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality



In order to quote you the best price, please tell us the details as following:

01.Grade and specification or drawings;

02.Quantity and quality level;

03.Operation environment;

04.Other special requirement.
